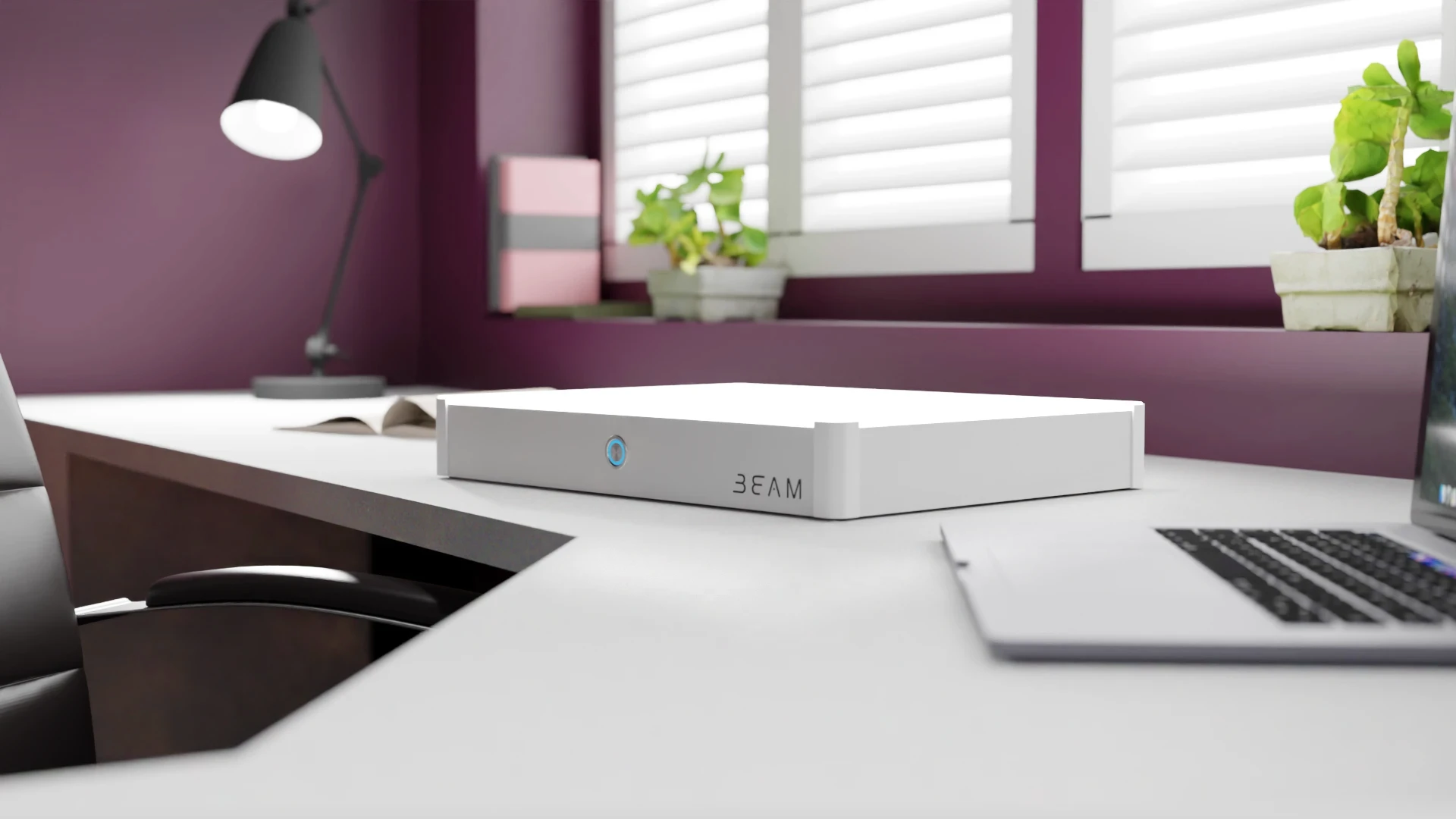

Introducing BEAM

The best rear lit LED light box

BEAM is built for inspection and graphic work where spotting the details really matter. With a rear illuminated screen, BEAM light boxes produce uniform pure white light with a perfect light distribution from edge to edge. The 5500K colour corrected LED light is easy to control and fully dimmable down to 10%.

Technical Specifications

✓ Standard sizes: A4 to A0
✓ Custom size available
✓ Brightness: 12,000 LUX
✓ LED lifespan: 50,000+ hours
✓ Power: 24V DC
✓ Ingress Protection: IP64
✓ Dimming range: 10-100%
✓ White colour: 5,500°K
✓ Wavelength: 500-545nm

From A4 to A0. Our standard sizes go up to 1.2 meters wide. If you're looking for a custom size we can make the BEAM to any rectangle up to 3 meters wide!

Colour Accuracy. For maximum accuracy the BEAM light box reliably produces 5500K white light. This ensures true-to-life colour representation not skewing any colours to a warmer or cooler hue.

Bright & Even. You can't beat a rear illuminated light box on brightness and the BEAM produces a whopping 12,000 LUX of uniform light output across the edge-to-edge screen. Need a brighter light box? Check out BEAM Pro.

BEAM Features

Reliable colour reproduction

Knowing that the colour you can see is being accurately enhanced by a bright light can be crucial for print matching or ensuring subtle defects are not being masked by an incomplete light spectrum.

All BEAM light boxes are fitted with 5500K LEDs which closely resemble daylight and include the full spectrum of visible light.

5500K white light output

True-To Life Colours

High Frequency, Low Stress

Our LED light boxes use high-resolution PWM dimming at a rapid 5kHz frequency to eliminate visible flicker, ensuring smooth and consistent illumination.

This not only enhances the accuracy of quality control and inspection tasks but also significantly reduces eyestrain, keeping operators comfortable during long shifts.

High frequency dimming

Easy On The Eye

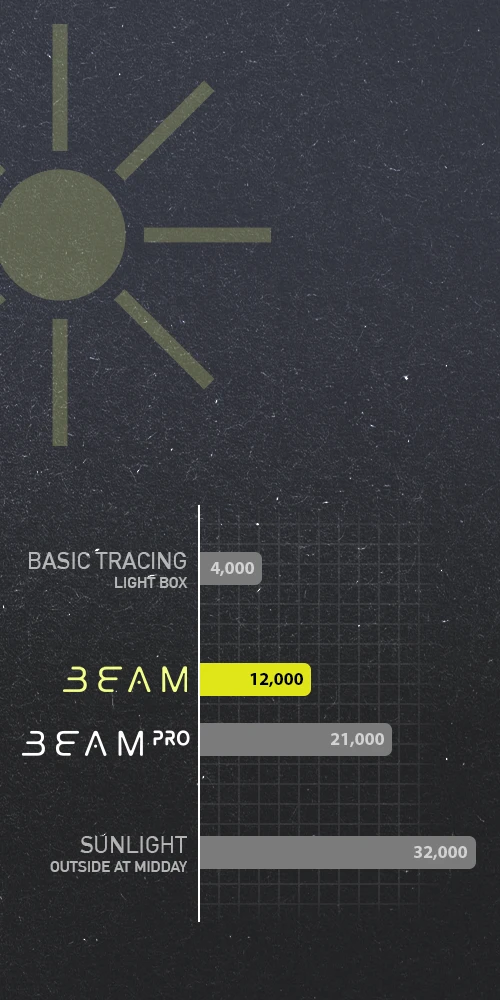

Light & Bright

With 12,000 LUX at the screen, BEAM is designed to meet the challenges of a wide range of industries. Providing useful light levels through up to 450gsm of paper.

The touch dimmer allows you to set brightness between 1,200 LUX and 12,000 LUX but if you need it brighter then the BEAM Pro and BEAM Lab both produce an increadible 21,000 LUX at the screen.

Impressive screen brightness

12,000 LUX

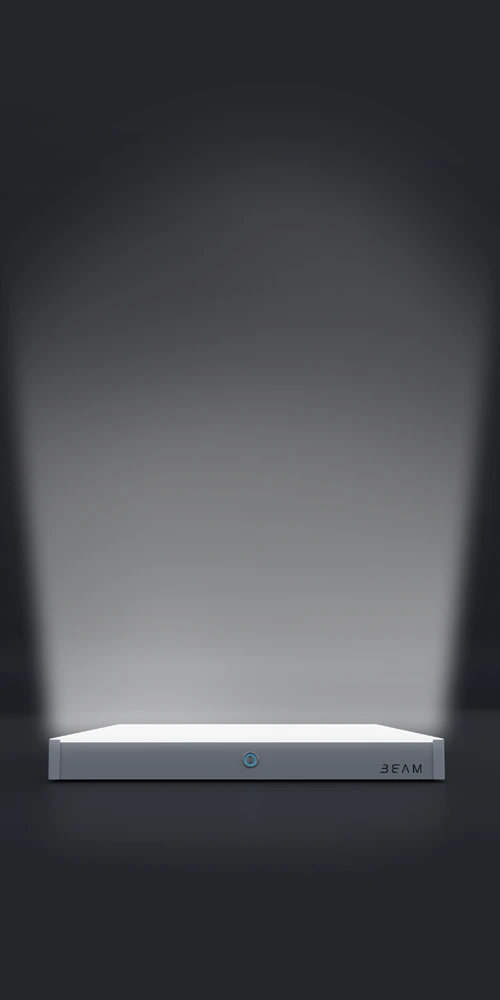

Right On The Edge

The screen has been developed specifically to diffuse LED light and the design of the BEAM maximises this by taking the light right to the edge of the screen.

Without a bezel or raised surround, not only does it make the most of your work area but you can slide articles on or off the screen with ease.

Constancy across the whole screen

Edge-To-Edge Illumination

Looking for a table?

BEAM Light Table

Reliable large format work station

The BEAM light box is also available as a free standing table in A1, A0 and 2A0 sizes.

If you have the floor space this can be a great option to easily allow several people to collaborate on an inspection task.

As standard all our light tables are fitted with an integrated toughened glass screen. The BEAM table also provides the options for castors to make it mobile - ideal for dynamic workspaces.

BEAM Table
